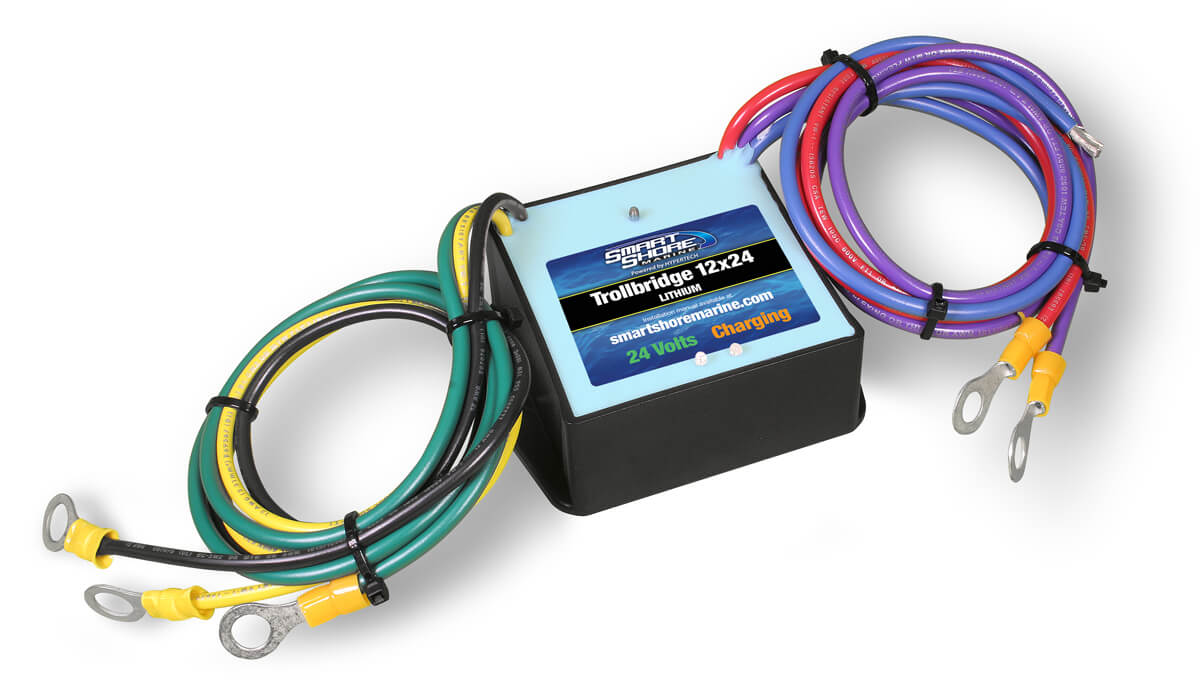

Trollbridge 12x24 for Lithium Batteries

Trollbridge 12x24L

The Trollbridge 12x24 for Lithium batteries allows you to charge your 24-Volt trolling motor batteries from the 12-Volt alternator on your main engine, from your trailer hookup, or from any single or multiple bank 12-Volt charger without risk of running down your starting battery. It works automatically by connecting the two (2) 12-Volt trolling motor batteries in series for trolling motor mode and connecting them in parallel for charging mode. It only charges the trolling batteries when the main engine is running, and the starting battery has reached a full charge level of 13-Volts.

Features & Specifications

• Starting battery will never discharge into trolling motor

• Automatically switches in series for 24-Volt output

• Batteries only charged when the engine is running

• Rated for 12-Volt alternators up to 100-Amps

• Rated for 24-Volt trolling motors up to 85-Amps

• Use Trollbridge 24 if you already have a Combiner

• Use Trollbridge 24 on 2-battery systems

• Green LED indicates 24-Volt output active

• Amber LED indicates charging is in progress

• No voltage drops so batteries reach full charge

• No modification to alternator or 12-Volt wiring

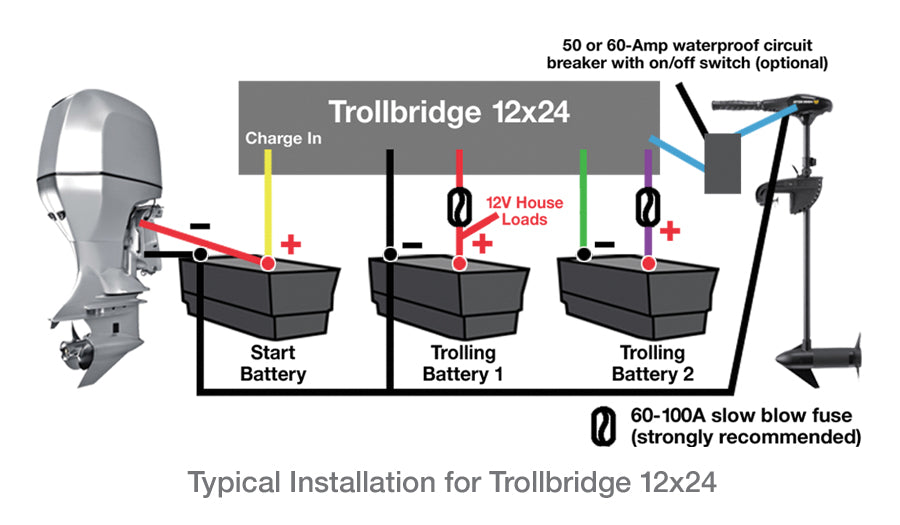

   Simple 6-wire basic installation

• No diodes to burn out if accidentally shorted
